Flat Glass Cake Cooler

TCCOOL's Flat Glass Cake Showcase Cooler offers a stylish, purpose-built display solution for refrigerated delicacies such as cheese, cakes and confectionary. Featuring uninterrupted views from heated glass on front top prevent condensation, two fully adjustable shelves and removable glass for cleaning, these units maintain moisture at low temperatures to ensure that products on display taste as good as they look.

  • Product Details
  • Parameter
  • Inquiry

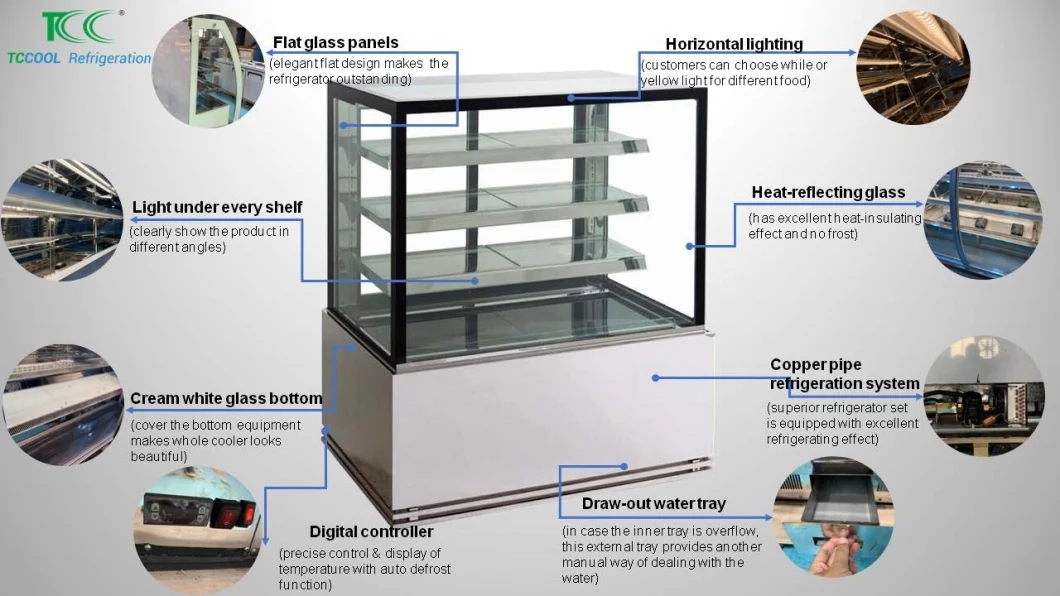

KEY FEATURES
1.Medium or high back pressure hermetic compressor. Low energy consumption.
2.Accurate touch screen digital controller, precisely control the working temperature.
3.Double glazed safety glass with heater inside is suitable for all climates anti condensation.
4.Adjustable shelves.
5.Forced air cooling system ensures effective air circulation.
6.Automatic defrost ensures the evaporator working to its optimum performance Automatic vaporizing the defrosted water.
7.Environment-friendly CFC-free Refrigerant R134a.
8.Voltage and cycles upon request.
9.Warmer or refrigerator upon request.








MODEL TCA-900A TCA-1200A TCA-1500A TCA-1800A
Volume ( L / Cu.Ft.) 320L/ 11.3Cu.Ft. 425L/ 15.01Cu.Ft.  530L/ 18.72Cu.Ft.  630L/ 22.25Cu.Ft.
External Dimension
( mm / inch)
900x680x1380 35.4''x26.8''x54.3'' 1200x680x1380 47.2''x26.8''x54.3' 1500x680x1380 59.1''x26.8''x54.3''  1800x680x1380 70.9''x26.8''x54.3''
Packing Dimension
( mm / inch)
970x750x1450 38.2''x29.5''x57.1'' 1270x750x1450 50.0''x29.5''x57.1'' 1570x750x1450 61.8''x29.5''x57.1'' 1870x750x1450 73.6''x29.5''x57.1''
Temperature Range
( ℃ / ℉ )
2~8 ℃
Type of Climate ST
Control System Digital Controller
Evaporator type Copper Pipe Fin Type Evaporator
Condenser type Copper Pipe Fin Type Condenser
Door Opening Direction Back Sliding Door
Defrost System Auto Defrost
Internal Lighting LED light under each shelf
Power Supply 220V/50,60Hz (110V/60Hz)
External Finishing Stainless Steel
Refrigerant R134a /  R290a
Shelf Material Transparent Glass / Milky Glass
Heater YES
Caster wheels 4 Caster Wheels with front holder stick
Shelf Quantity 4 shelves 4 shelves 4 shelves 4 shelves
Net Weight ( kg / lbs) 186kg/410.1lbs 226kg/498.2lbs 263kg/579.8lbs 300kg/661.4lbs
Gross Weight ( kg / lbs ) 201kg/443.1lbs 246kg/542.3lbs 283kg/623.9lbs 330kg/727.5lbs
Loading (20'GP/40'GP/40'HQ) 18 / 36/ 36 13 / 28 / 28 10 / 22 / 22 9 / 19 / 19
